Air Balancer

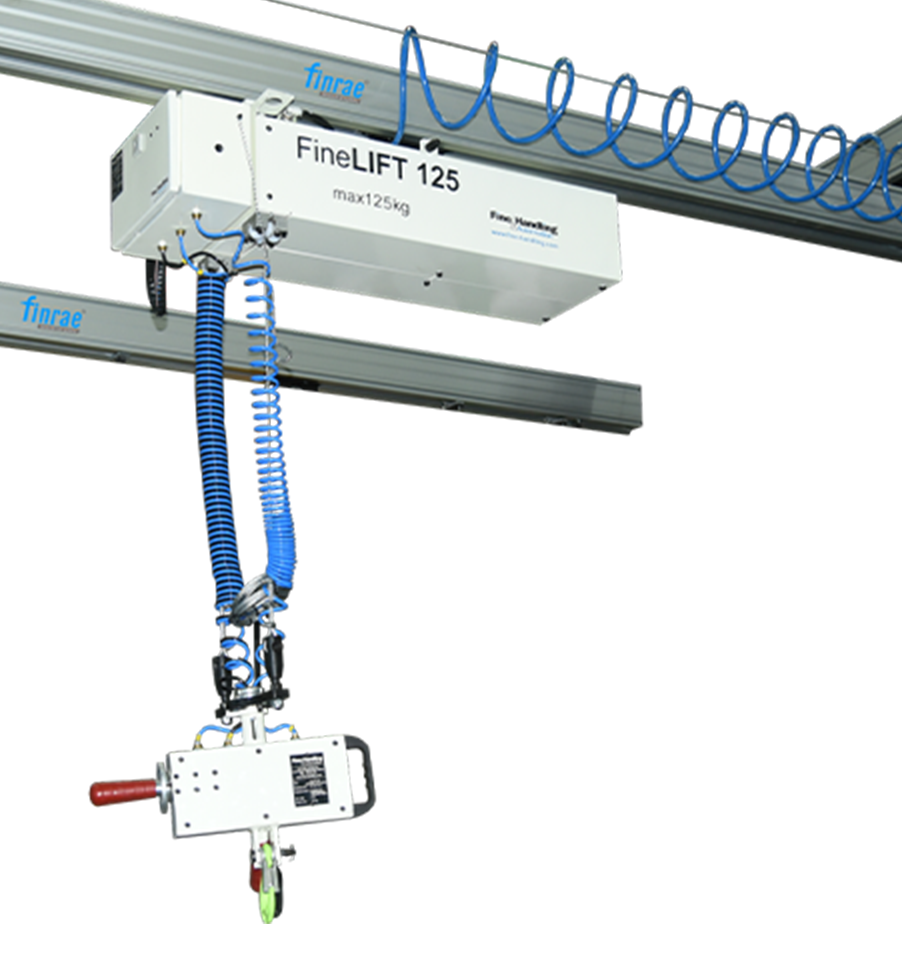

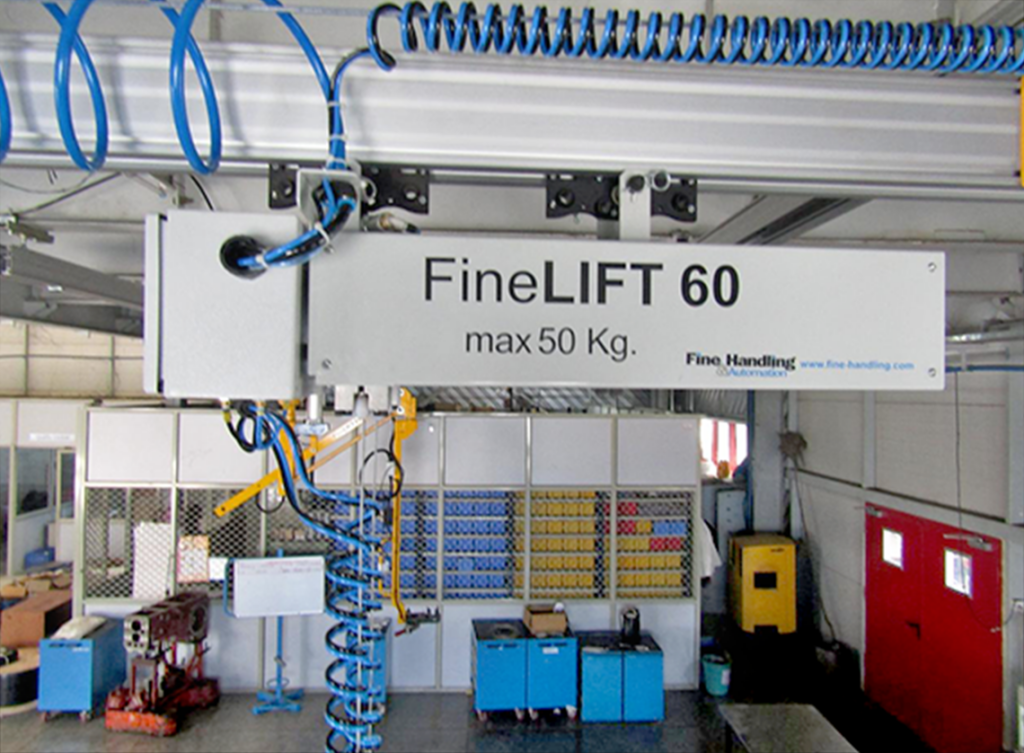

The FineLIFT twin-rope balancer is a perfect zero gravity balancer, which balances loads up to rated capacity as required using only air-pressure as the power source.

Work without Weights

ABOUT AIR BALANCER

Our precision pneumatic balancing circuit for zero gravity handling systems enables the operator to manipulate load in a state of weightlessness throughout its working area.
An Air Balancer is ideal for compact installation and quick pick & place operations. Air balancing equipment is excellent for repetitive tasks in assembly processes, repair, and production activities in many industries, including manufacturing, solar energy, automotive, railroad, aviation, healthcare, and food.

FEATURES

  • Loads can be lifted with very minimal lifting effort
  • Equipment goes into balance only after proper sensing of jobs
  • Two-lifting cables instead of one for increased safety
  • Arms to achieve maximum ergonomic reach and lift
  • Totally extrusion proof as it uses only air as power
  • Very low air consumption (5NL per stroke) and very low noise generation

KEY HIGHLIGHTS

  • One of the leading manufacturer of Air balancer in India
  • Air balancer with different type of customized grippers can be provided

Grippers

Fine handling has developed specialized grippers for Cylinder Block. Equipped with orientation change mechanism of 45° and 90° which facilitates operator easily load the cylinder block at required angles.

Fine handling has developed specialized grippers for Cylinder Block. Equipped with orientation change mechanism of 45° and 90° which facilitates operator easily load the cylinder block at required angles.

A spare wheel is either mounted on tailgate or in the boot space, Fine Handling has developed innovative grippers for types of spare wheels

Handling of seats is one of the most challenging tasks in the automotive assembly line, With Fine Handling get assured solution for handling of bulky seats

Handled 32 variants of rotors, weighing in between 25 to 350 kg and one single gripper to handle them all. Prcoess involved mounting the rotors on the testing machine with perfect precision

Seamless Insertion of Heavy instrument Panel through narrow door aperture is a challenging task, Fine Handling has developed unique grippers for this task

Fine Handling has developed innovative gripper which grips on the periphery of the shaft mounted on the telescopic manipulator.

Fine Handling’s Gripping solution for engine front cover is capable to lift vertically presented component tilt it by 90° to be placed horizontally

16 Replaceable grippers for the handling of Electric components in the Locomotive Assembly line, Manipulator is designed in such a way that gripper can be easily changed as per the component

Doors are typically assembled in two ways i.e. hinge or Pin & bore type. Fine Handling has developed various types of door grippers right from Vacuum based to clamp based

This gripper for Tractor wood is capable of handling seven different variants. Handling involves a fully painted tractor hood that has to be placed in a particular orientation
